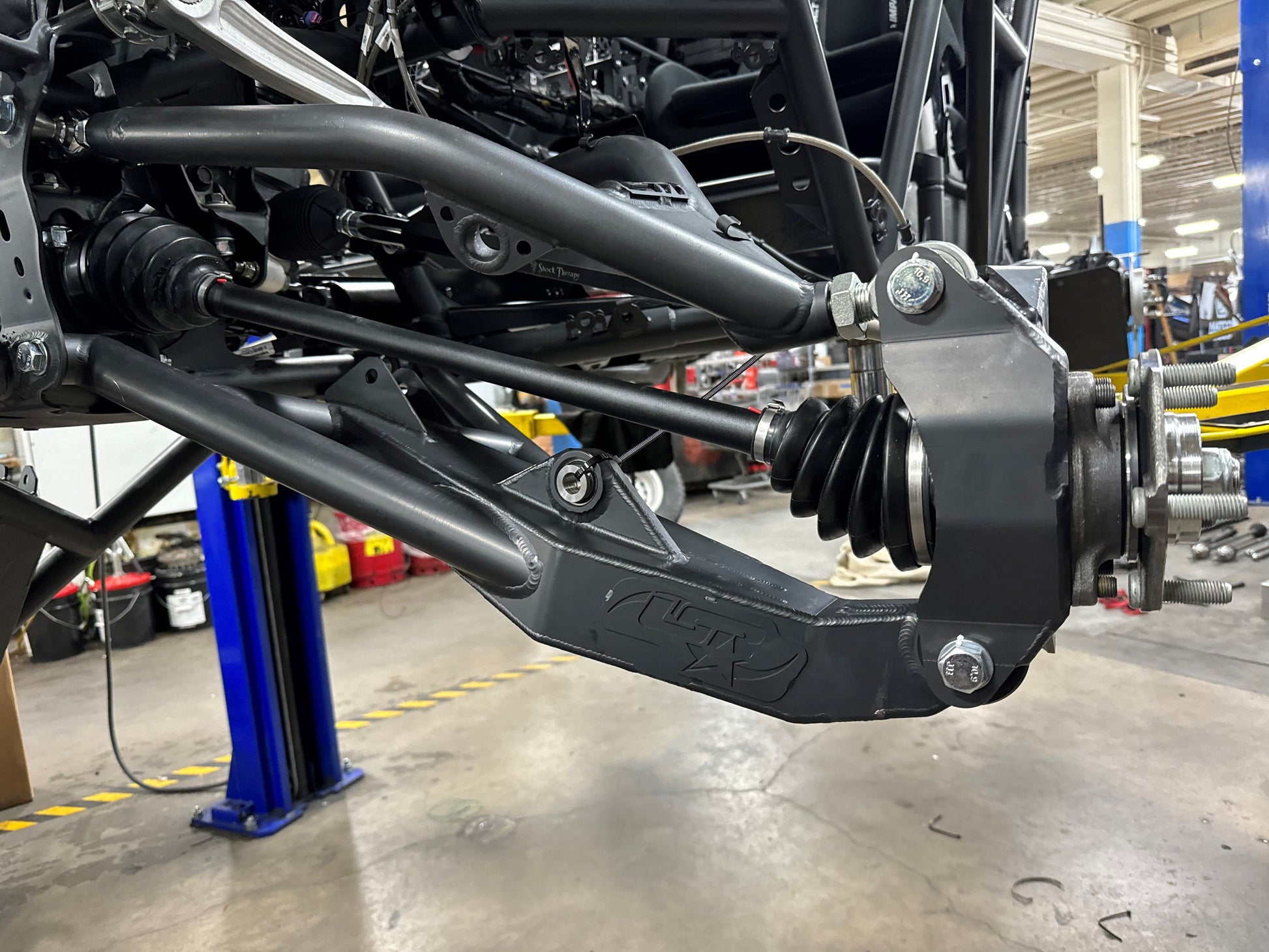

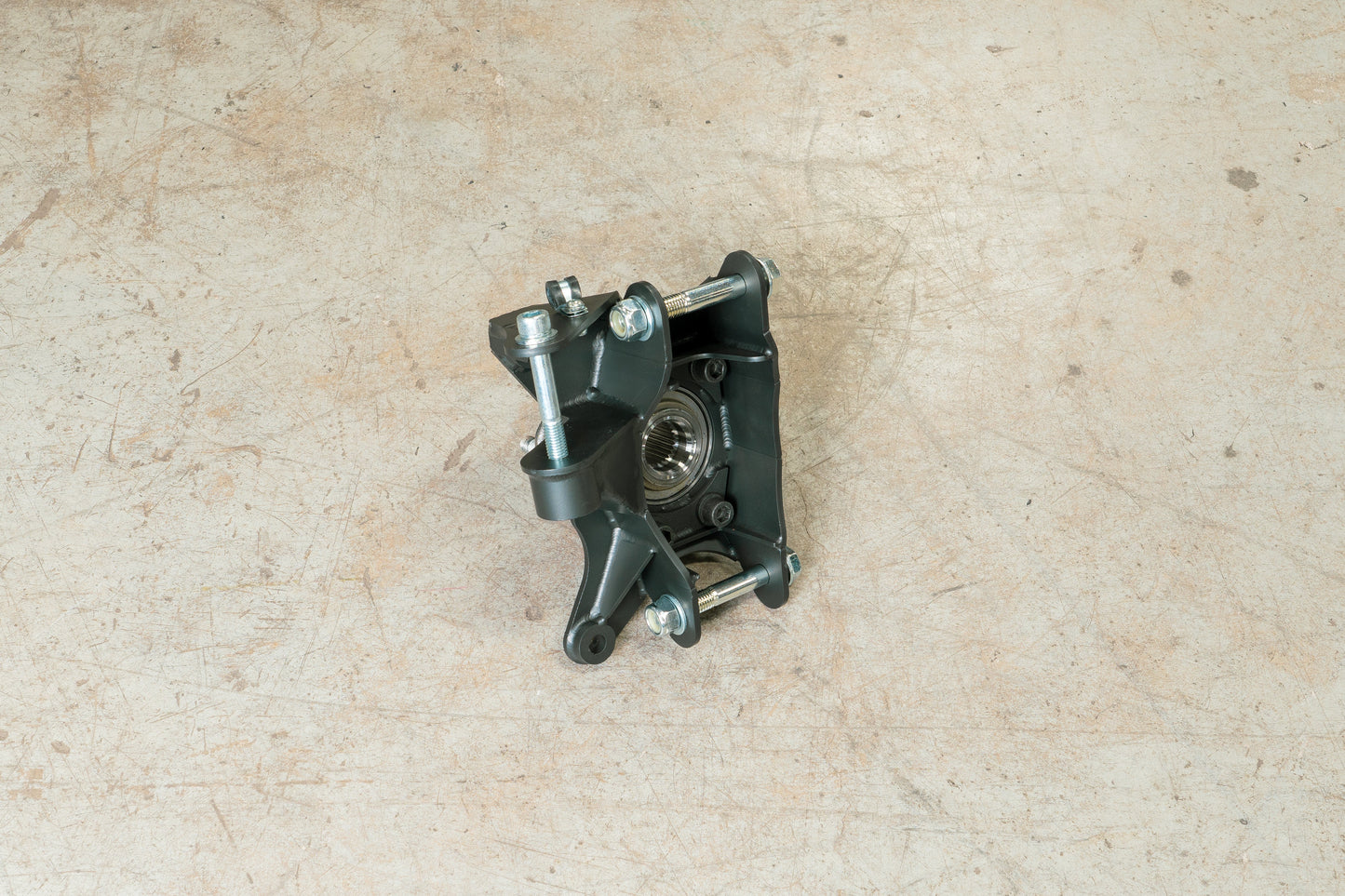

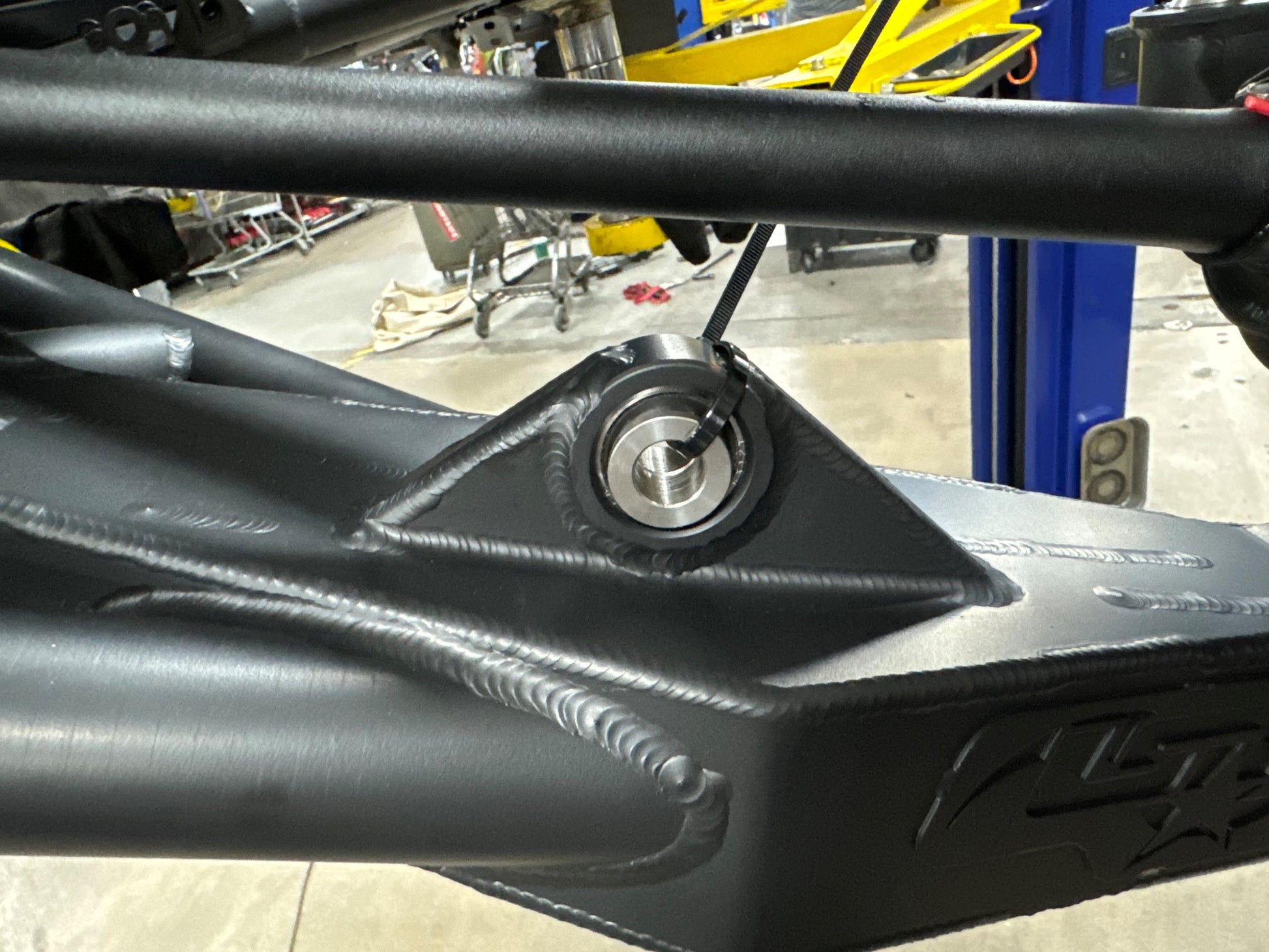

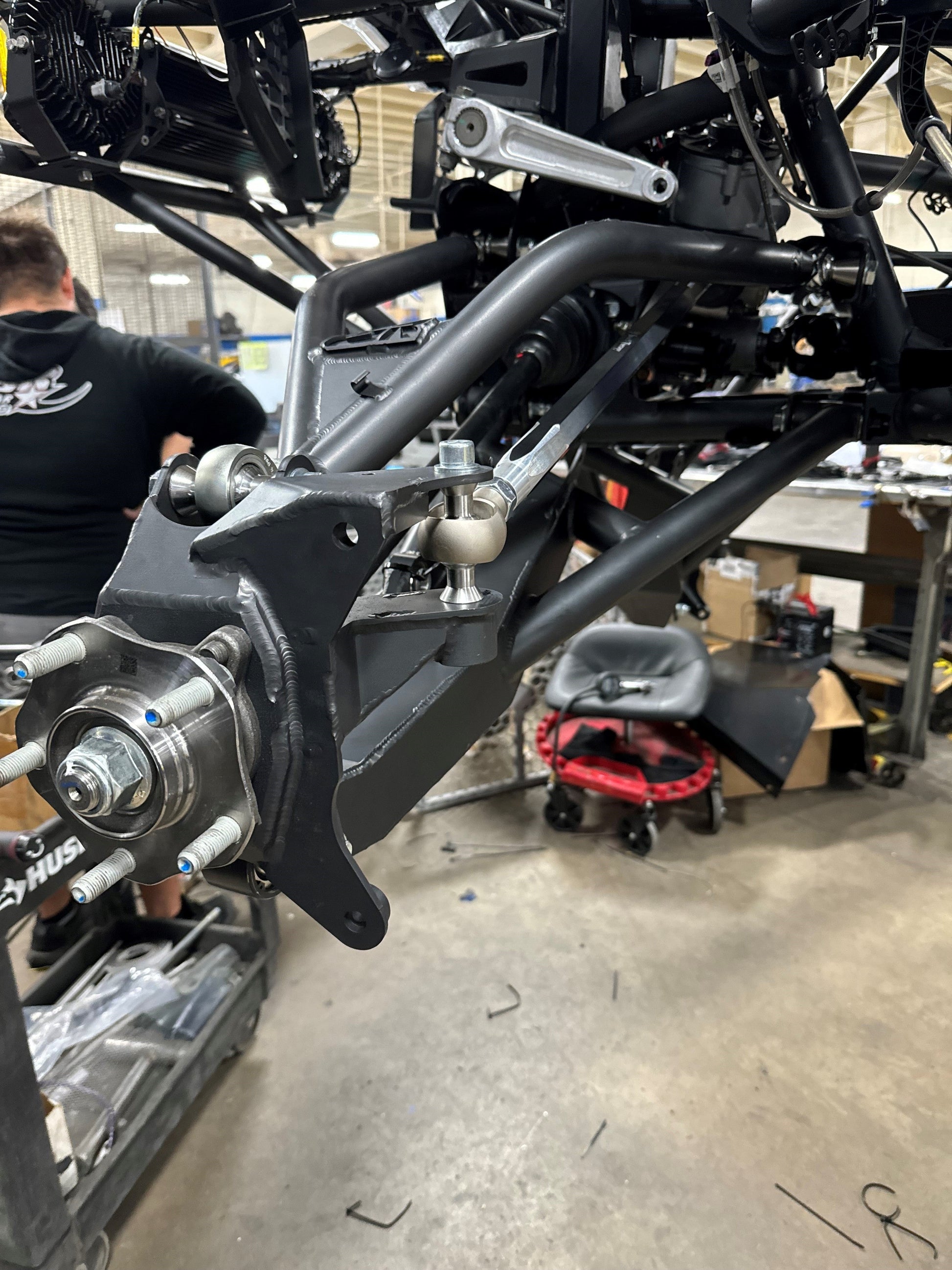

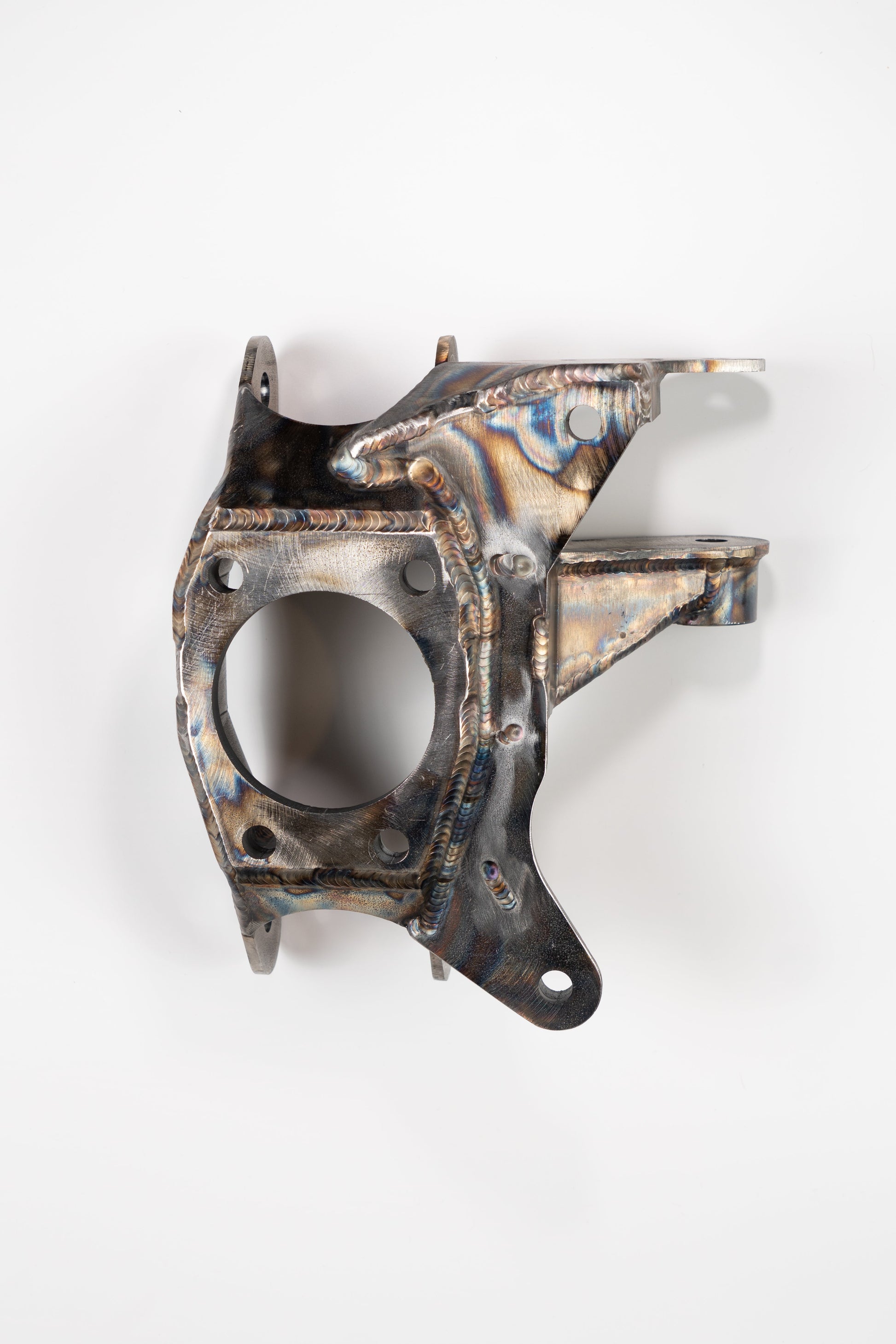

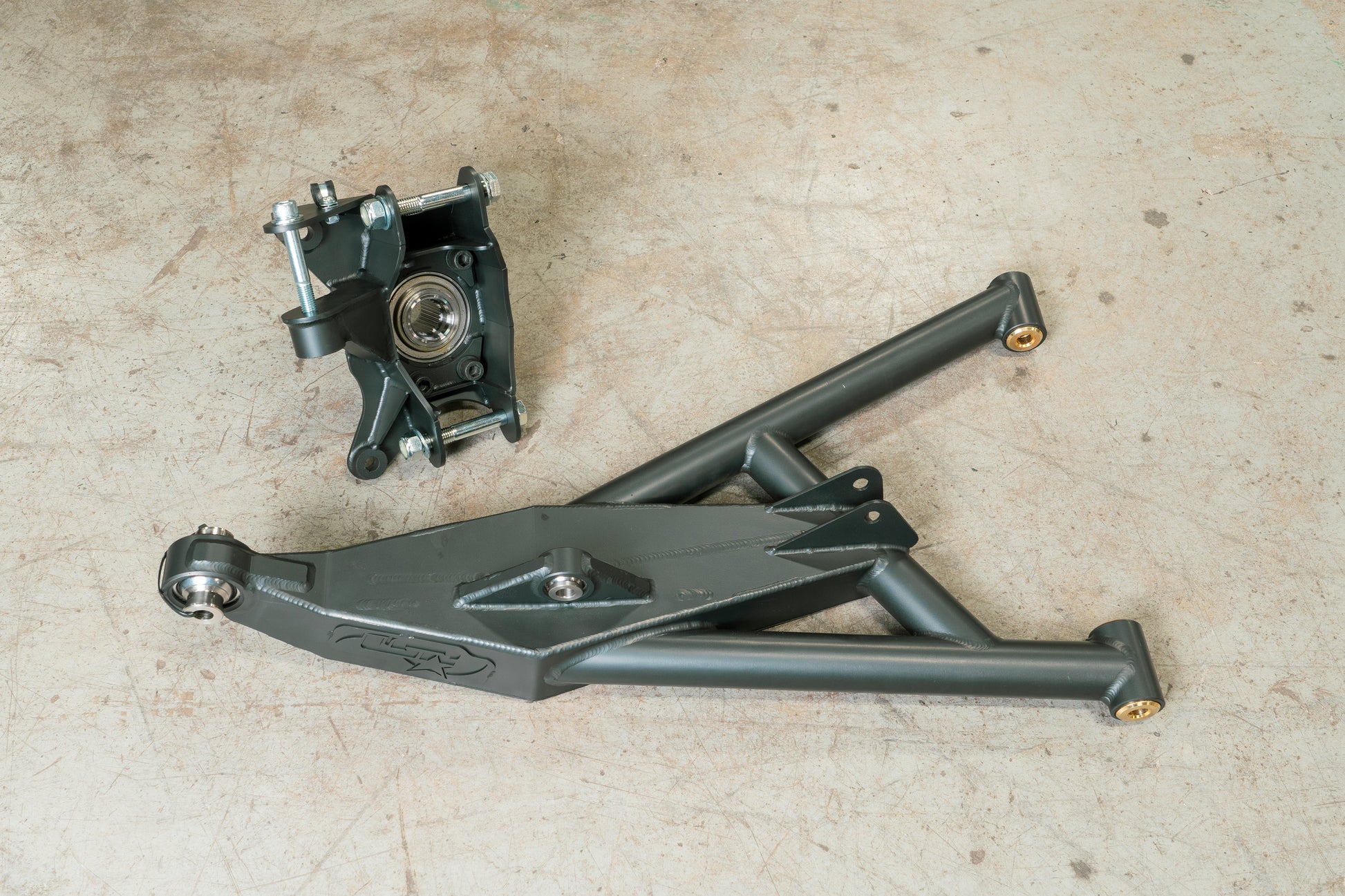

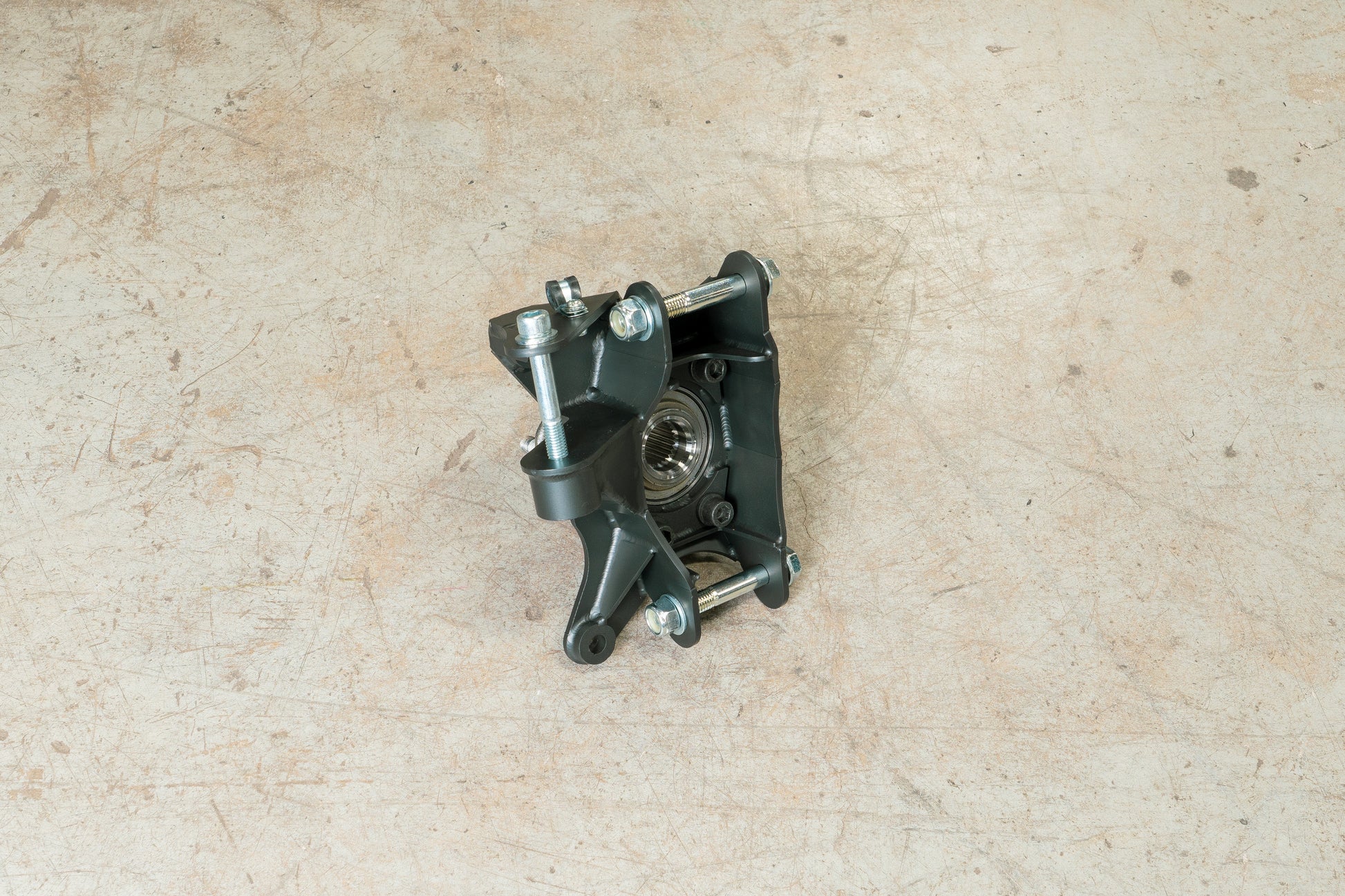

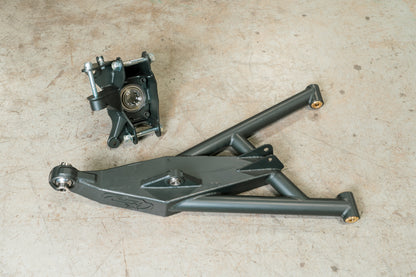

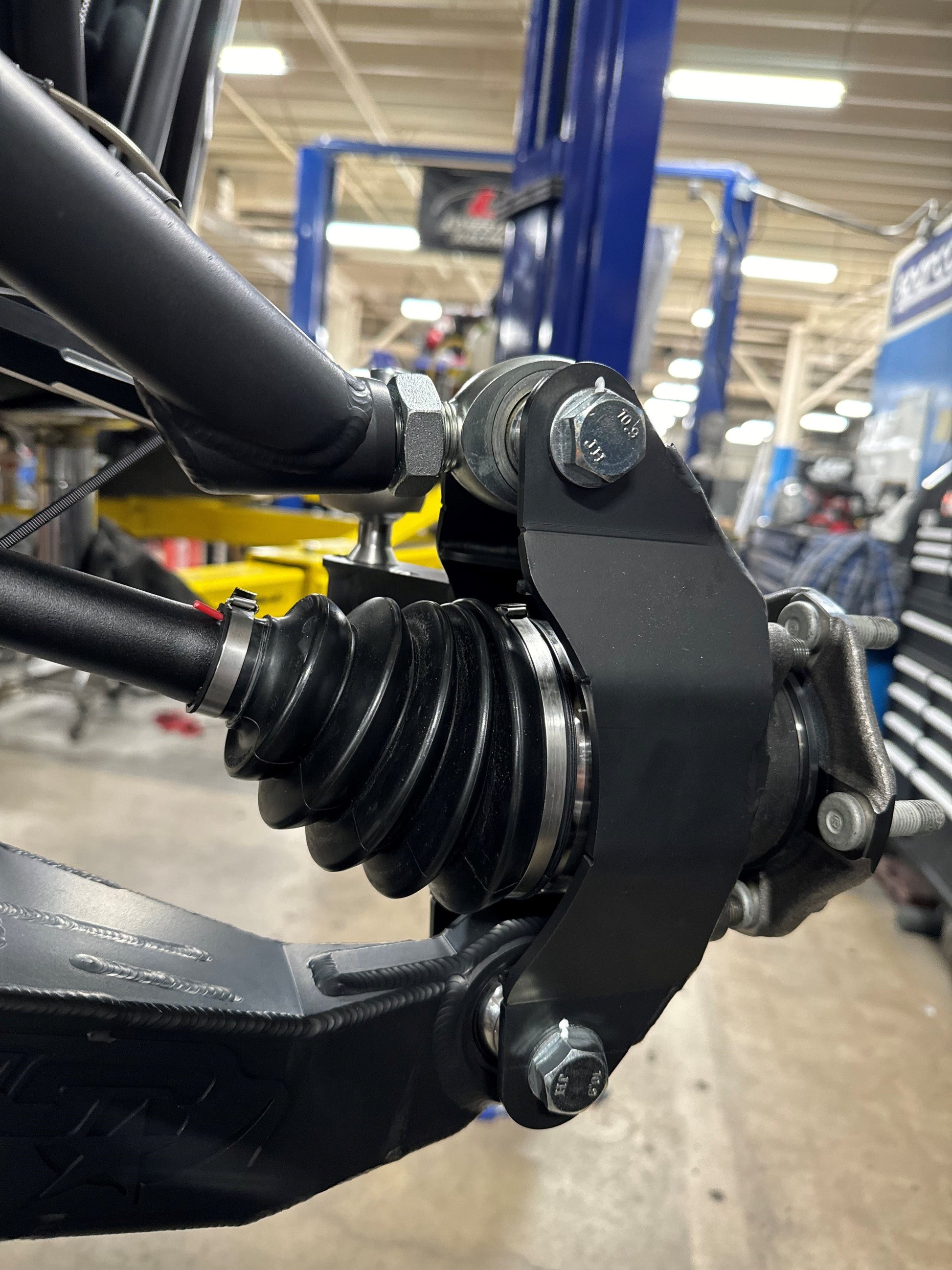

The ultimate front suspension upgrade for your Pro R! The Lone Star Racing lower A-Arm kit is a heavy duty replacement for the stock lower A-Arms and knuckles. Designed to be used with our adjustable upper control arms. Made from heavy duty 4130 chromoly and tig welded. We use a vertical 1" FK uniball for the lower "balljoint" and a 3/4" FK uniball for the shock mount. We've moved the tie rod location on the knuckle to improve steering geometry and reduce feedback dramatically. Every mounting point is now double shear for increased strength. The lower arms will retain factory hardware at the chassis mounting points and will use factory hubs and brakes.

Will work with any tie rod kit that uses a 3/4" heim joint for the outer tie rod end. We will include mis-alignment spacers to accommodate the rod end to the double shear mount.

We can include a Shock Therapy tie rod kit for an additional $849.95



Baja tested and proven by Branden Sims. 1300 gruesome miles and absolutely 0 play in the uniballs.



REQUIRES THE USE OF OUR ADJUSTABLE UPPER CONTROL ARMS (Link below)
