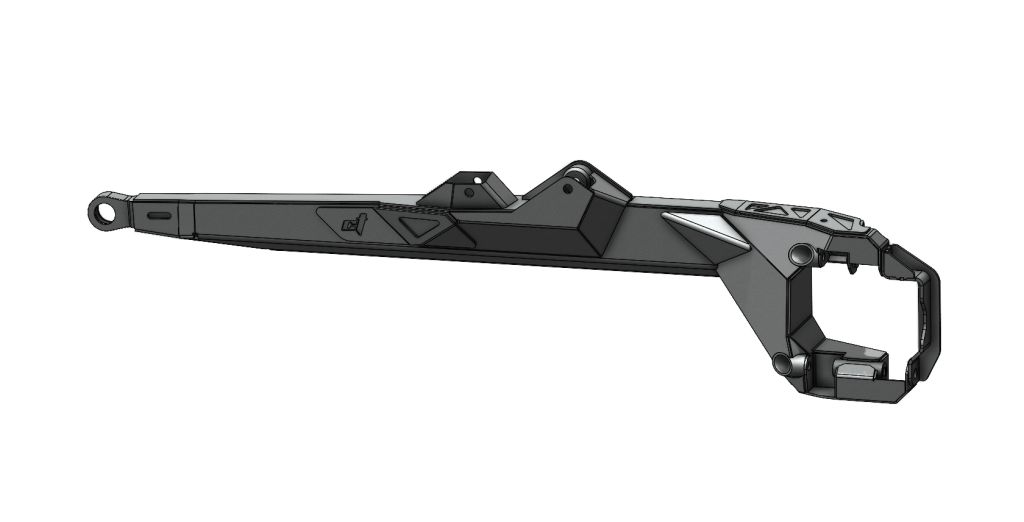

Maverick X3 64" Boxed Trailing Arms, Gen 2

Discover the unmatched trailing arms for your X3 – the strongest and battle-proven choice available, bar none. Our design starts with the proven boxed construction, a hallmark of our product line for a decade, aligning seamlessly with our a-arm design. With these arms, you'll gain over 4 inches of ground clearance, with a pivotal boost of over 2.5 inches in usable clearance right beneath the shock mount, positioned at the front of the tire.

Constructed from a blend of .115" and .1875" Grade 50 steel, these arms thrive under relentless punishment and practically crave it. We've engineered the brake line bungs in the arm with a sealed bottom, safeguarding them from internal exposure, while employing supplied 6mm hardware. The removable back strap piece on the trailing arm's rear side simplifies installation. With more than a quarter-inch of material thickness on the underside, these arms are built to withstand desert cruises and rock bashing without flinching. They are bolt-on components, compatible with factory shocks without requiring modifications.

Please note that these arms are designed to accommodate stock wheels and tires. Larger combinations with differently offset wheels that narrow the track width may potentially result in interference.

Important Note: If you plan to order this part in a bare finish and intend to powder coat it, it's crucial to avoid sandblasting or powder coating the bore of the uniball pockets. These components are machined to an exceptionally tight tolerance and undergo meticulous bore gauge measurements. Any deviation from this process may result in improper uniball fitment or snap ring placement. In such cases, we will not be able to warranty the item due to issues related to uniball fitment or installation.

As always, our arms come backed by our straightforward lifetime warranty, and you can find replacement wearable items at the bottom of this page for added peace of mind. Choose the ultimate in trailing arms for your X3 and elevate your off-road experience to the next level.

Lead time is roughly 6-8 weeks.
