L&W Fab Long Travel Kit for Polaris RZR Pro XP

L&W Fab Long Arm Travel Kit for 2020+ Polaris RZR Pro XP

L&W Fabs Long travel kit fits 2020-current Polaris Pro XP. This is a Bolt on installation, No welding or drilling is required.  This kit adds 4” to each side of a Pro XP giving it a 72” width with stock offset wheels.  It also adds 3.5” to the wheelbase. The front A arms are 1.75” forward offset, and rear trailing arms are 1.75” rear offset, which improves stability. The A arms are high clearance and made from 1.5” DOM. Only Steel Parts will come powder coated.  Aluminum parts can be powder coated for an additional charge.

This kit maintains front and rear factory shock location. You can use factory Pro XP bushings and factory ball joints, Although we highly recommend upgrading to Keller Ball joints and Performance SXS Bushings (See links below). Trailing Arms, A Arms, and Radius Rods will come powder coated to match.  It is also highly recommended that you replace your factory spring with a Shock Therapy Dual Rate Spring kit designed for the long travel kit as your factory suspension will be extremally soft after installing this kit.

Features:

• Made In USA
• Lifetime Warranty
• 3.5" of added wheelbase
• 8" of overall width
• Improved stability
• No drilling Required - All Bolt on components

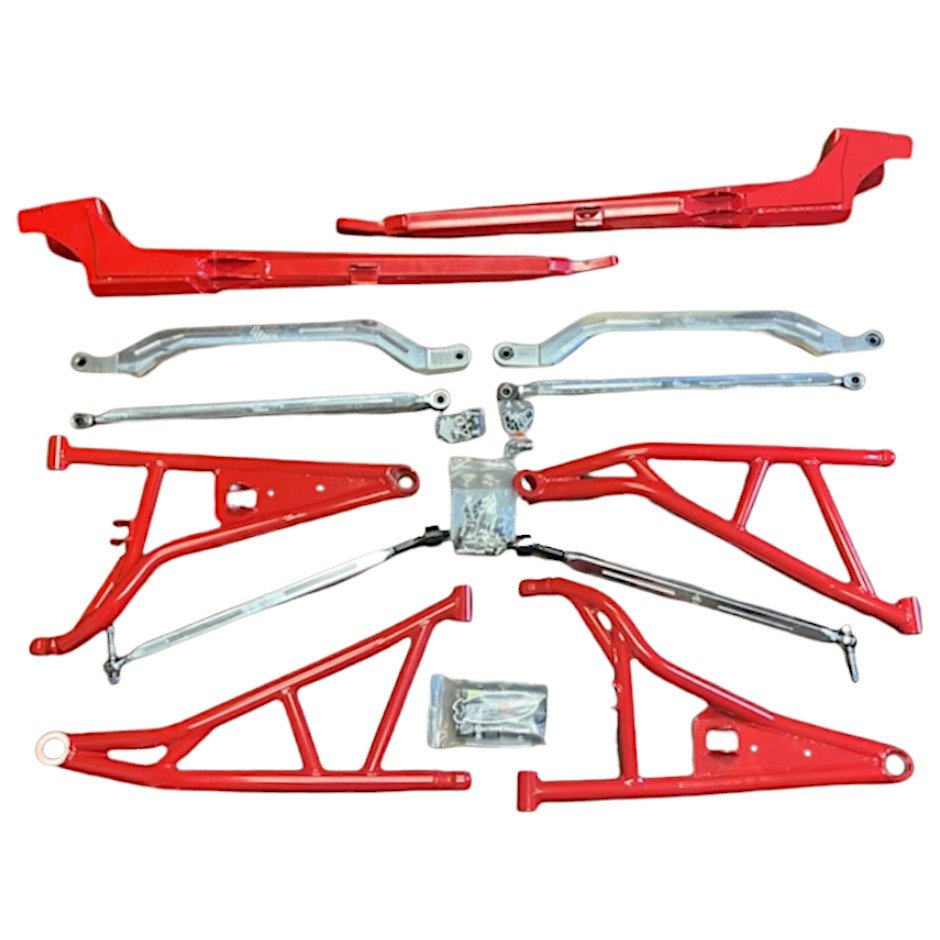

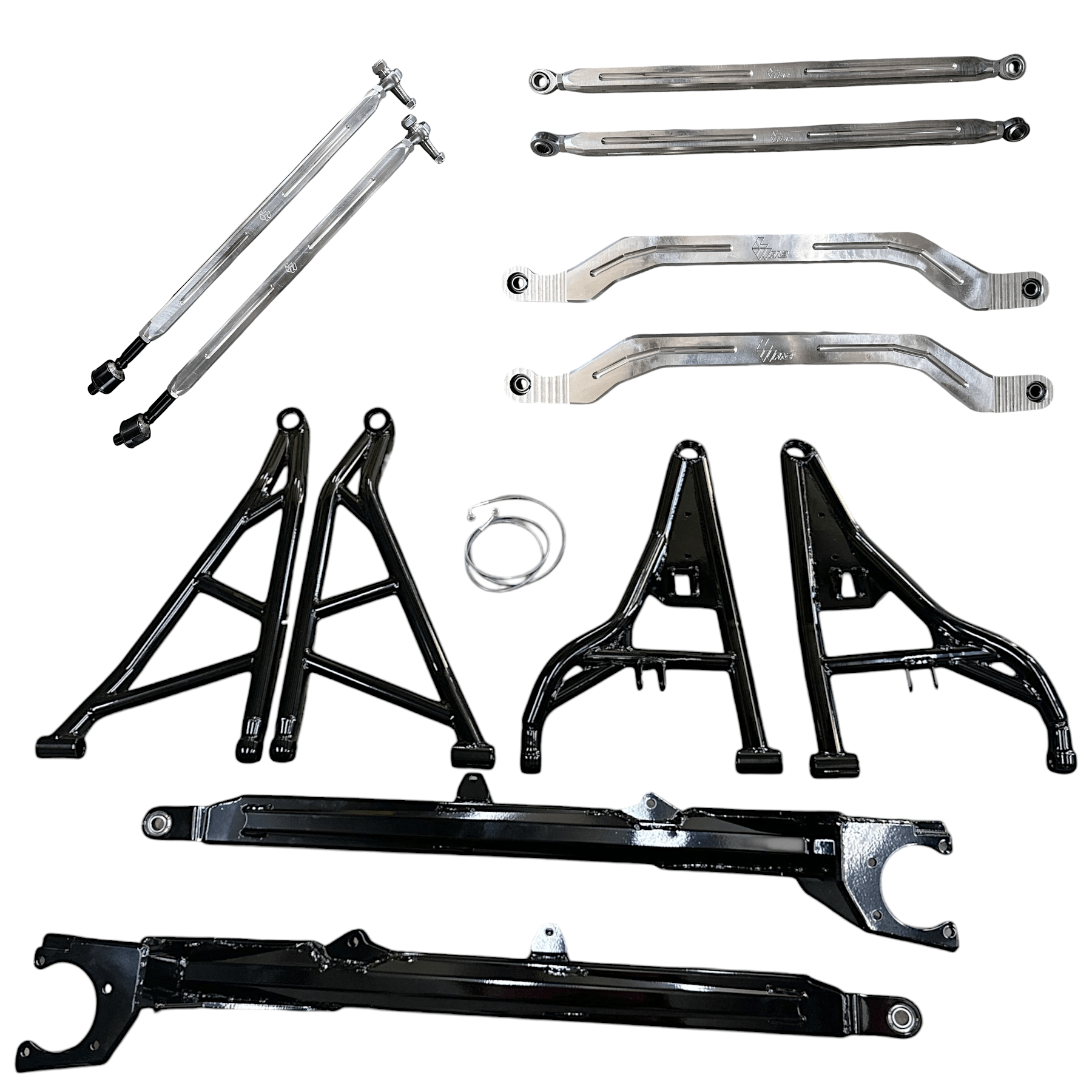

Kit Includes:

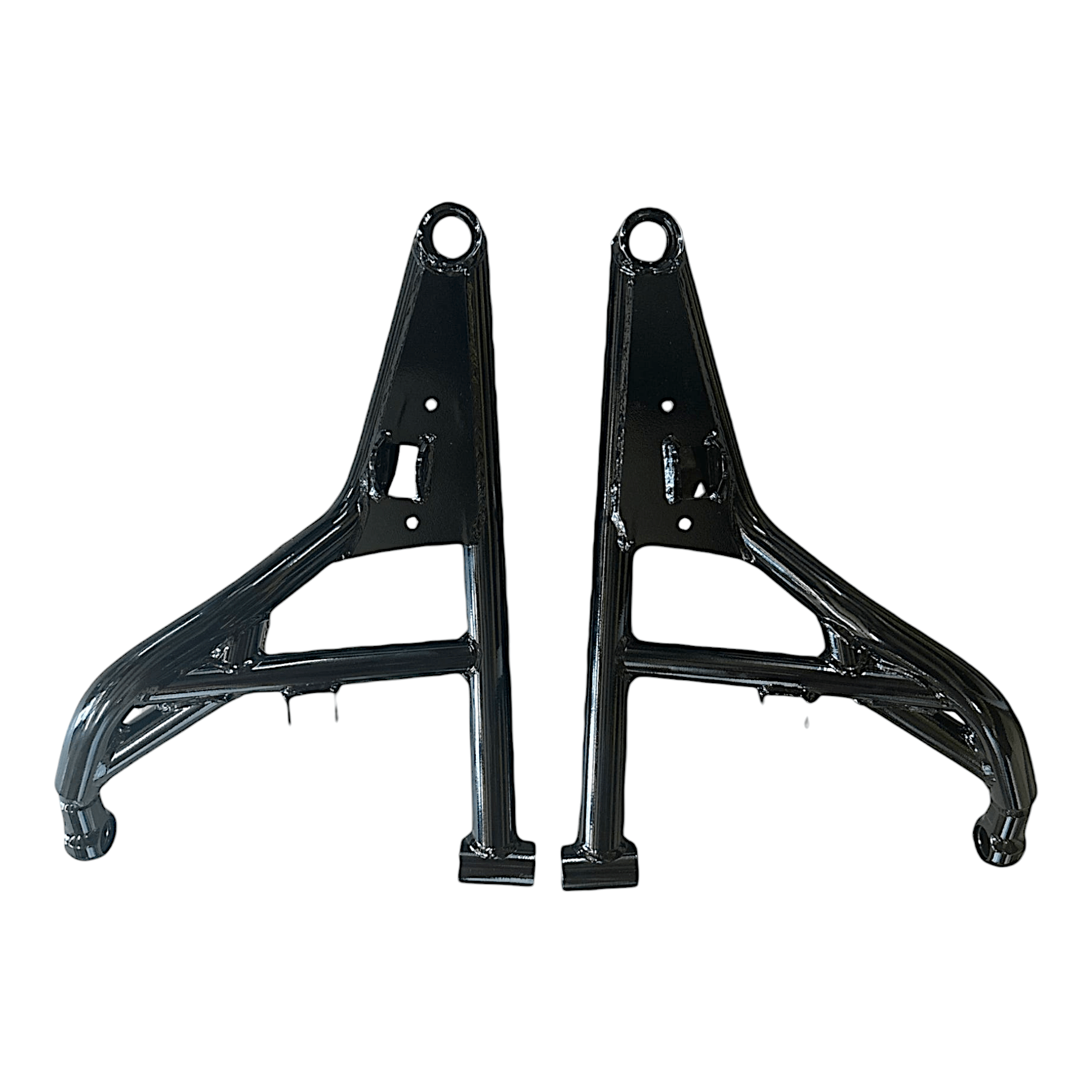

• Front upper and lower 1.75" Forward Offset High Clearance A arms. (Non- Adjustable) (Stock size ball joints)

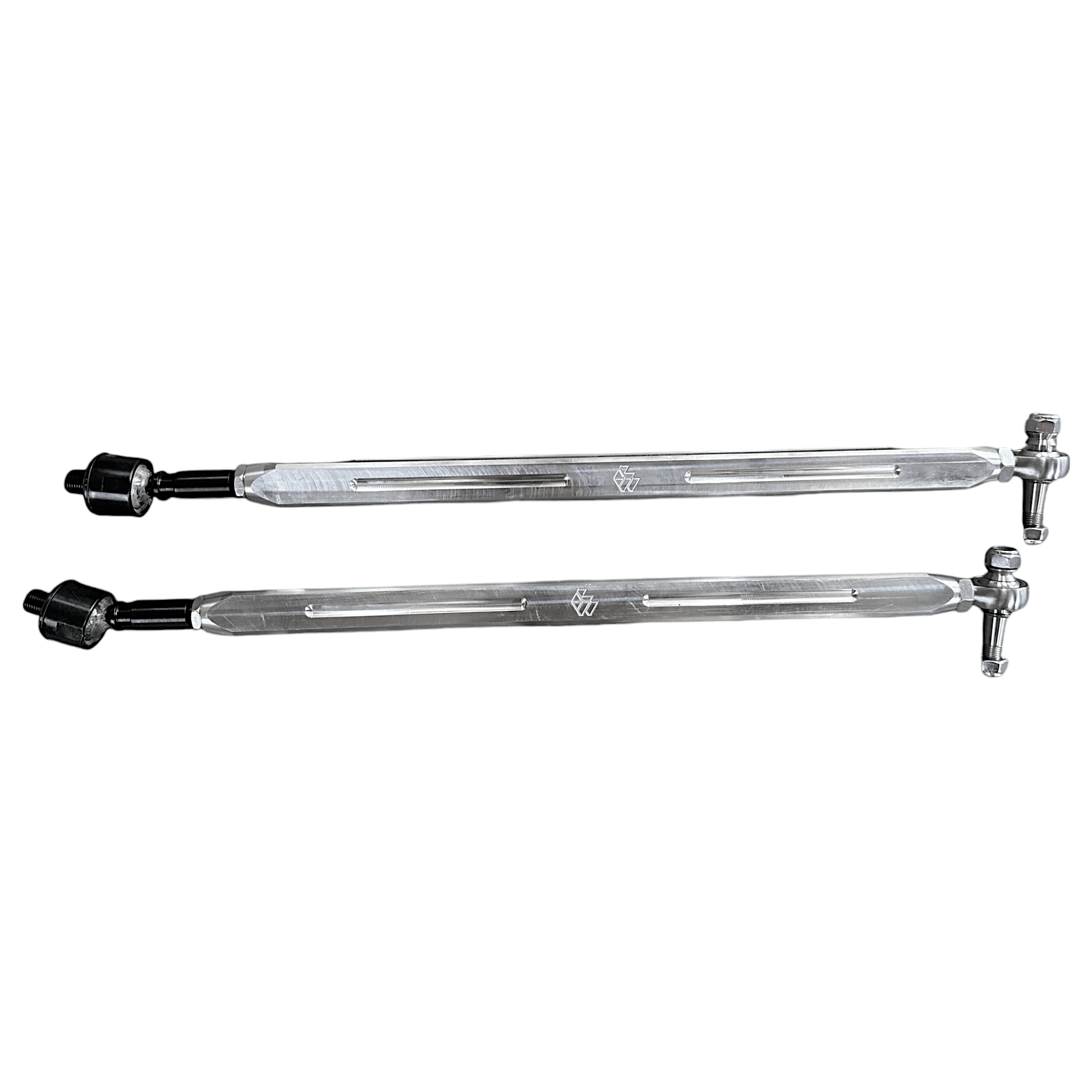

• Set of Tie Rods with L&W Fab HD rebuild-able inner joints (raw)

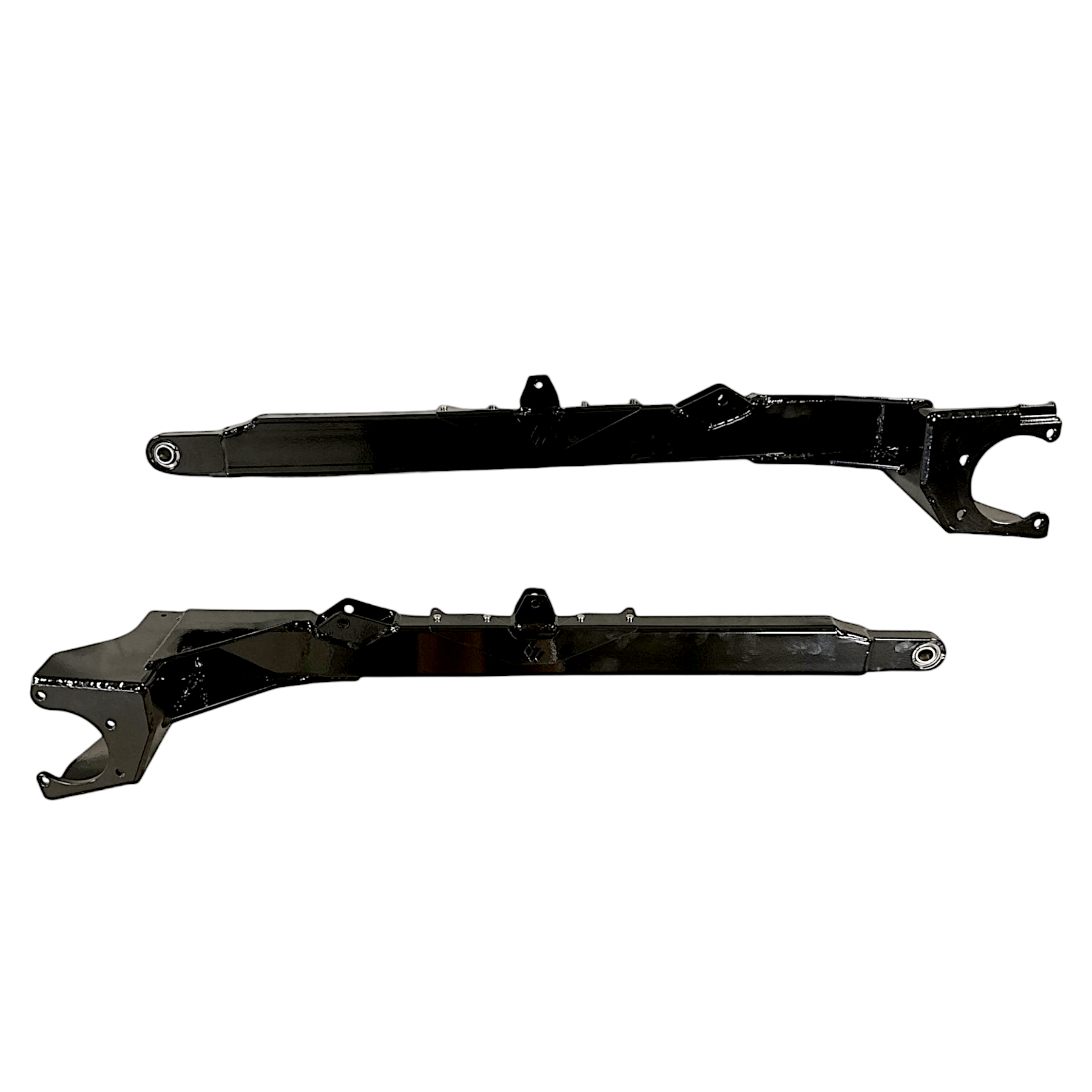

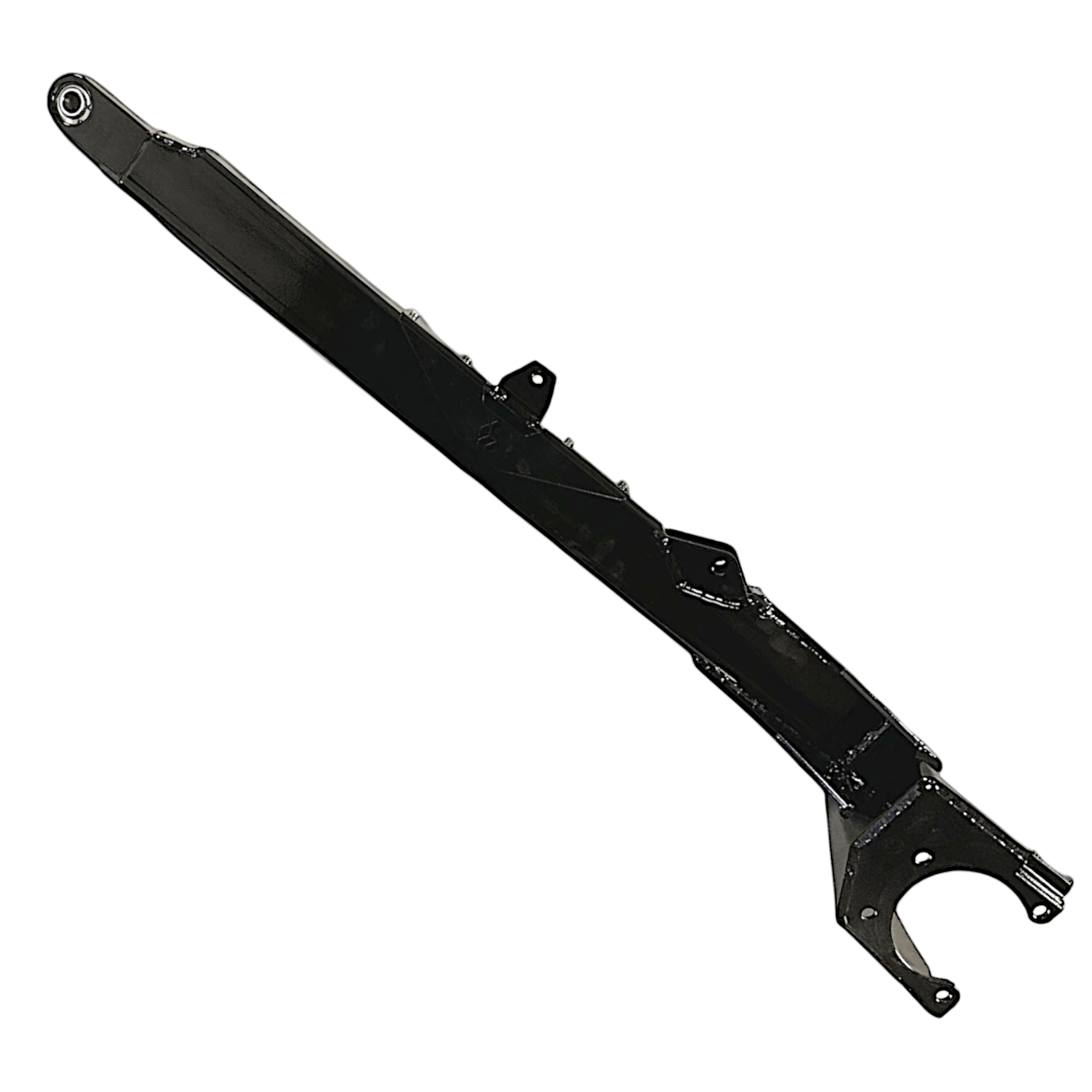

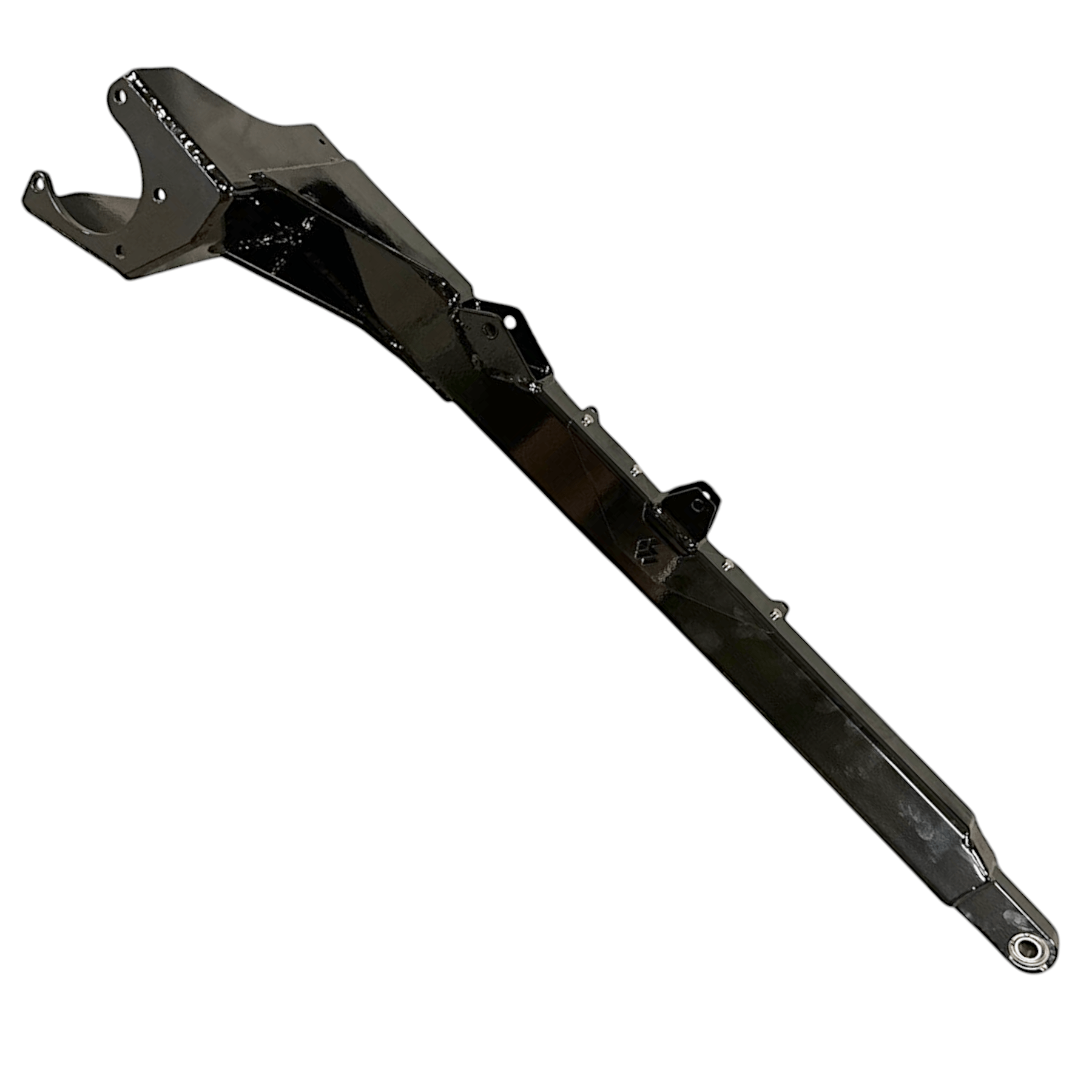

• High Clearance 1.75" Offset Steel HD Adjustable Trailing Arms

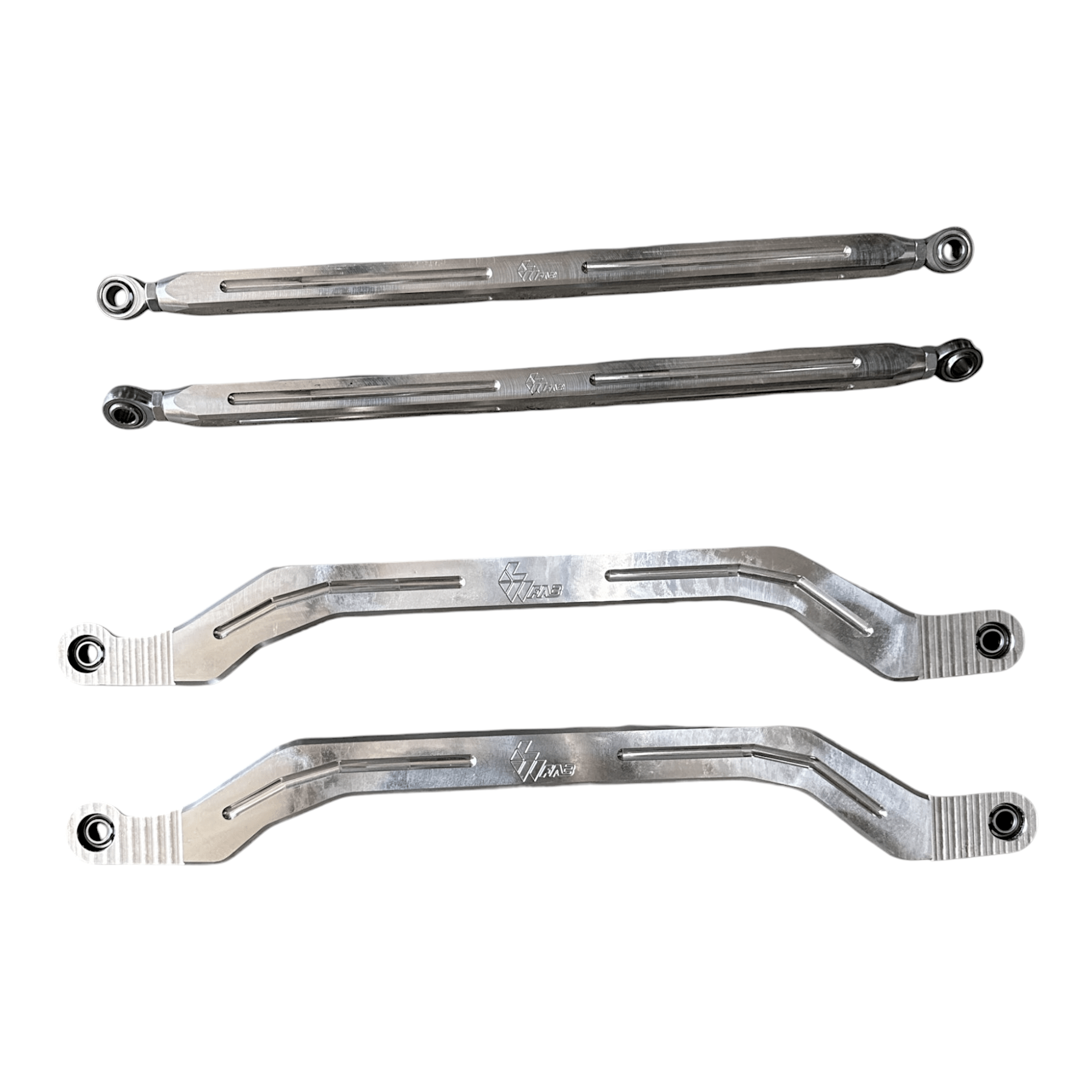

• High Clearance Billet Aluminum Radius Rods with adjustable uppers. (raw)
• (1) Extended brake line for front passenger side

Required Items:

You will need extended axles to complete the long travel kit

Recommended Items:

• Shock Therapy Dual Rate Spring Kit
• MTS Offroad Dual Rate Spring Kit

We highly recommend the Shock Therapy Dual Rate Spring Kit, the long travel kit will cause the factory springs to be much softer.  See Shock Therapy link above for more information.

Please include in the notes if you have a 2 or 4 seat Pro XP

***Ball Joints or A Arm Bushings WILL NOT come installed***
